Dual track car wash machine

Main products:reciprocating automatic car washing machine series, tunnel type automatic car washing machine series, bus automatic car washing machine series, contactless car washing machine series, etc.
Contacts：Mr. Liu
TEL：+8617163667888
EMAIL：zh_xcj@163.com
Our company sincerely invites you to visit our enterprise. We look forward to your arrival and are confident that we will leave a deep impression on you. Our company always adheres to the customer's needs as the guide, aiming to create high quality, high reliability, and high degree of automation. We take it as our responsibility to provide services and develop and produce various models of car washing equipment for customers based on industry core technology and years of experience. We believe that through this visit, you will have a better understanding of our company's strength and competitive advantages。 If you agree to visit, please contact us by email or phone to confirm the time。

COMMODITY INFORMATION

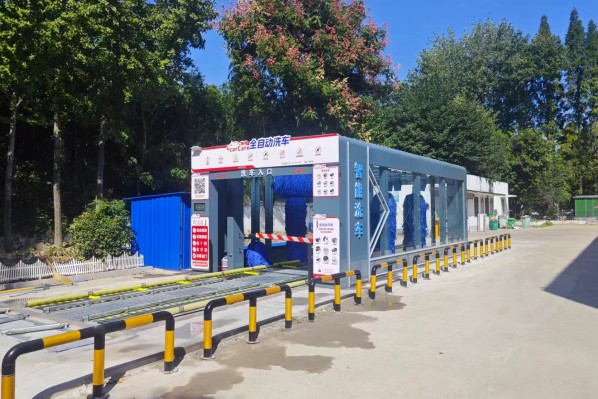

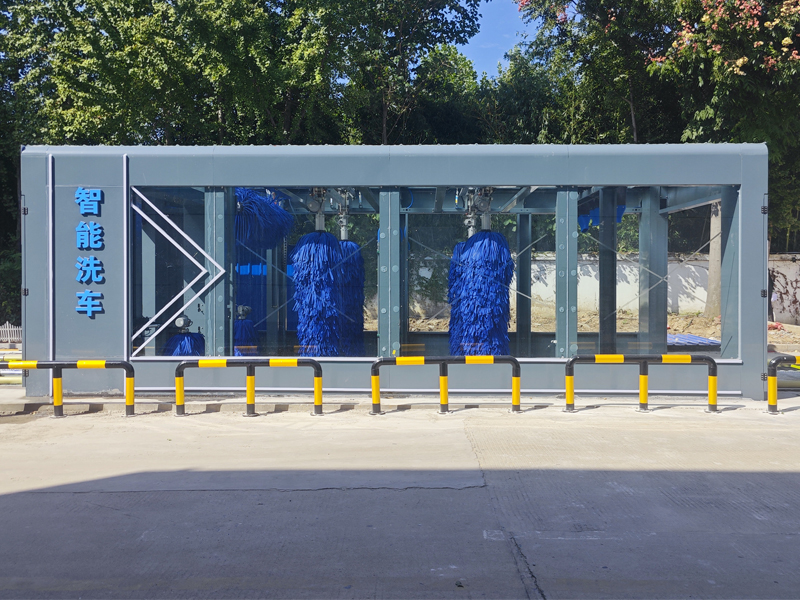

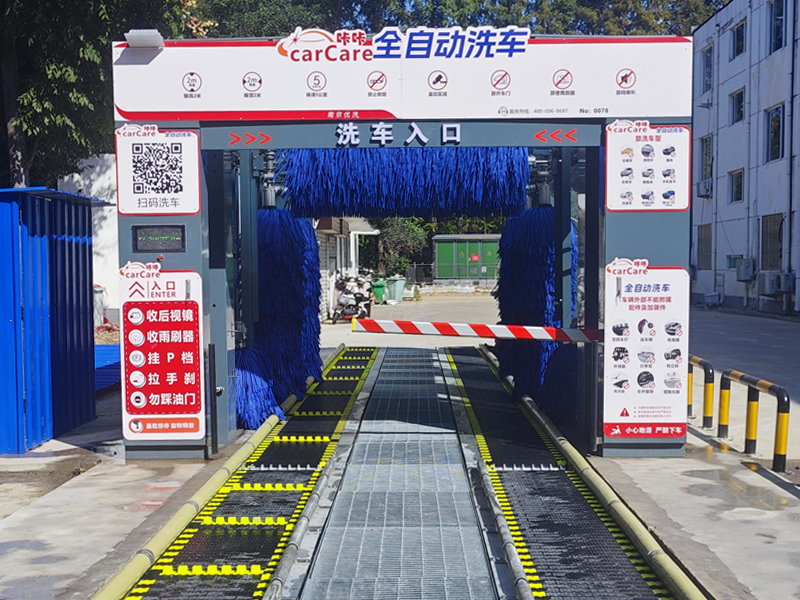

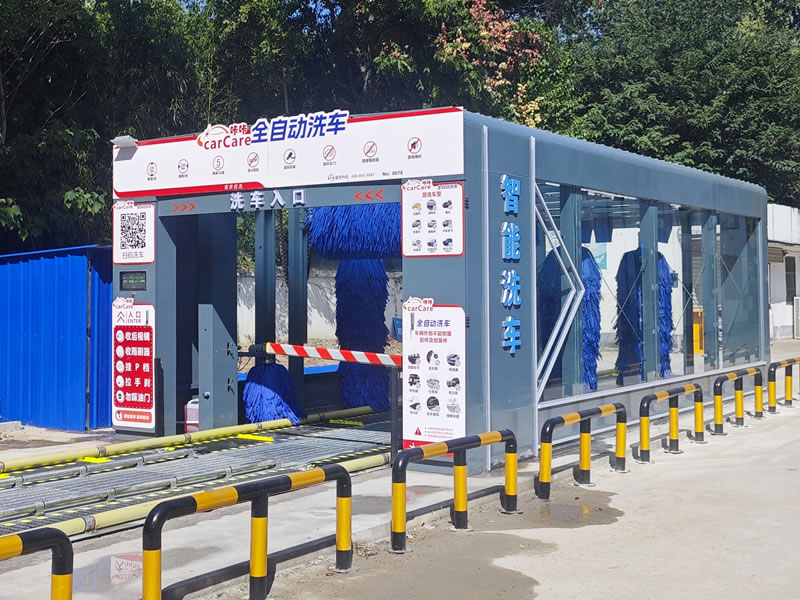

Tunnel type car washing machine
Parameters/Series	9-MSF	11-MSF
Equipment size	Length 12.5 * Width 4 * Height 3 (m)	Length 15 * Width 4 * Height 3 (m)
Installation dimensions	Length 24 * Width 4.5 * Height 3.2 (m)	Length 27 * Width 4.5 * Height 3.2 (m)
Cleaning size	Unlimited length * Width ≤ 2.3 * Height ≤ 2.1	Unlimited length * Width ≤ 2.3 * Height ≤ 2.1
Car washing speed	About 90 seconds per vehicle (affected by car wash mode)	About 90 seconds per vehicle (affected by car wash mode)
Installation voltage	380V50HZ	380V50HZ
Water consumption for car washing	About 100-150L/vehicle	About 100-150L/vehicle
Vertical brush	4branch	4branch
Skirt brush	4branch	4branch
Top brush	1branch	1branch
Wheel brush	/	2branch
Total power	33KW	33KW
power consumption	1KW/vehicle	1KW/vehicle
Applications	Sedans, Jeeps SUV、 minivan

Performance advantages of fully automatic tunnel car washing machine

1、The main body is made of 3mm thick galvanized steel plate bent and formed, which is sturdy and does not deform, ensuring a long service life of the machine.

2、Electronic components, pneumatic components, and PLC operation control system ensure reliable and stable operation of the machine.

3、Adjustable speed car wash control system, fully galvanized large ball chain, infinitely variable frequency conveyor, automatic rear end collision prevention.

4、High definition touchscreen interface for convenient human-machine dialogue.

5、Solid non porous foam material brush, with long service life, soft and wear-resistant, does not damage the car paint, and is not easy to entangle.

6、Silent high-pressure water supply system, electrically controlled swing fan water knife, fully clean the vehicle body.

7、Standard template design for the entire machine, laser cutting of high-quality steel plates for components, and gas shielded welding of mortise and tenon joints.

8、Advanced photoelectric detection system with strong penetration power that is not affected by water mist interference.

9、High performance waterproof motor reducer ensures stable operation of the machine.
